Application of the Thermo E 200 and Thermo E 320 heaters
Water heaters operate independently from the vehicle engine and are connected to the cooling system, fuel system and electrical equipment of the car. Water heaters together with conventional car heaters serve
-for heating the passenger compartment
-for thawing car windows
-for preheating of water-cooled automotive engines.
Heaters are installed only in horizontal position.
Thermo E 200 and Thermo E 320 heaters are installed without changing CO2 settings with unlimited use up to 1,500 m above sea level, up to 2,000 m above sea level for a short time (passing passes, stopping times).
For long-term operation at altitudes from 1500 to 2000 m, CO2 level adjustment is necessary, because due to low air pressure, a change in the exhaust gas composition is possible.
Heating of the passenger compartment or driver's cab is possible only in vehicles not specified in Directive 94/55 / EC (ADR, TRS).
Thermo E 200 - 24V
Diesel fuel water heater, heating capacity 20 kW (17,200 kcal / h)

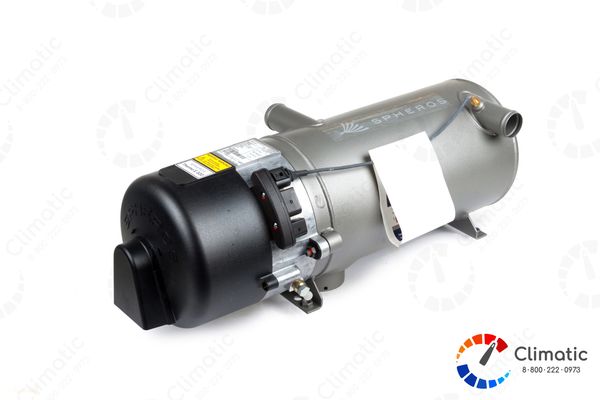

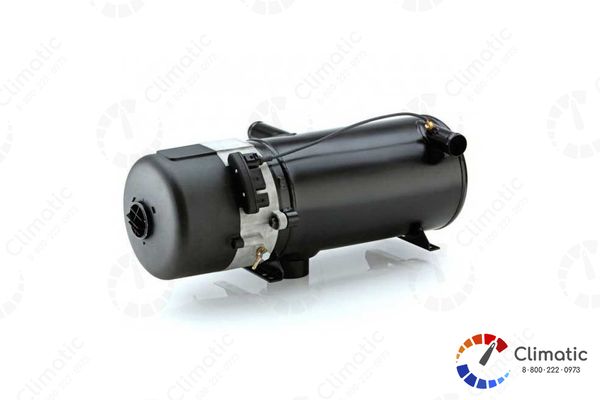

Thermo E 320 - 24V
Diesel-fired water heater with a heating capacity of 32 kW (27.500 kcal / h)
Upon request and depending on the configuration, it is possible to equip the heater with a nozzle heating system.
